Name：Titanium Gr.2 Sheet
Standard:ASTM B265
Material:Gr.2
Size:1500*2000mm
Thickness：0.5-100mm
Package:Wooden Box
Pure titanium usually contains 99-99.5 percent titanium, with the balance consisting of iron and interstitial impurity elements hydrogen, nitrogen, carbon and oxygen. The microstructure of pure titanium is composed of α-phase grains, and a small amount of β-phase may exist. The strength of pure titanium is very high. The tensile strength in the annealed state is 300 to 500 MPa, which is similar to that of carbon structural steel. After heat treatment, the strength can reach 1000 to 1400 MPa, which is similar to high-strength structural steel. Strength of. In addition, its plasticity is also excellent, so it is suitable for press working.
Application
Titanium is a new metal. Because of its excellent properties, it is widely used in aviation, aerospace, chemical industry, petroleum, metallurgy, light industry, electric power, seawater desalination, marine engineering, ships and ships, construction, electronics, mechanical equipment, It is known as a modern metal in the production of electroplating equipment, sporting goods, clocks, glasses, jewelry, environmental protection, medical care, high-end furniture and daily consumer goods.
Chemical :
| Grade | Fe (max) |
C (max) |
N (max) |
O (max) |
H
(max） |
AL | V | Residuals Elements Each（max） |
Residuals Elements Each（max） |
| Gr1 | 0.2 | 0.08 | 0.03 | 0.18 | 0.015 | 0.1 | 0.4 | ||
| Gr2 | 0.3 | 0.08 | 0.03 | 0.25 | 0.015 | 0.1 | 0.4 | ||
| Gr5 | 0.4 | 0.08 | 0.05 | 0.20 | 0.015 | 5.5-6.75 | 3.5-4.5 | 0.1 | 0.4 |

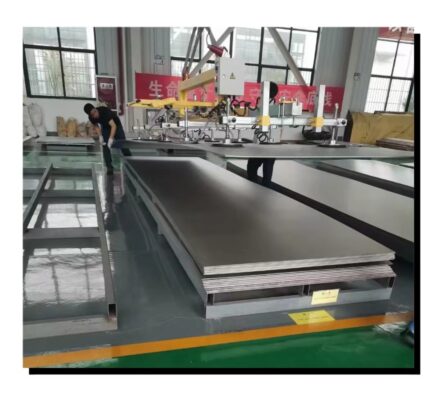

Product Show：
